DLM Series Powered Loudspeakers

INNOVATIVE
COMPACT DESIGN

Incredibly powerful, Mackie DLM Series loudspeakers deliver premium sound in the most compact, professional portable loudspeaker series ever. Perfect for bands, venues and installs, the powerful, compact DLM series is the new shape of sound.

FIND A DEALER

The NEw SHape

of sound

Featuring Mackie’s TruSource™ vertically-aligned, common-magnet driver and TruSource DSP for unmatched fidelity and packed with cutting-edge technology to deliver a staggering 2000 watts of power in a groundbreaking design with an integrated digital mixer plus all the channel effects and system processing you’ve ever wanted.

Series Overview
DLM Series

[5:23] A comprehensive look at the DLM lineup

SMART

TruSource^™ Technology

Both full-range models feature TruSource™ DSP and the extremely compact TruSource driver, which combines the high and low-frequency driver into a vertically-aligned, common-magnet design for sonic reproduction that is incredibly transparent across the entire frequency range.

LOUD

2000W of Power

The powerful Class-D amplifiers are ultra-efficient with optimum heat dispersion and ample protection circuitry to keep things running smoothly night after night. DLM delivers maximum power in a minimal space with plenty of headroom to crank it up.

CONTROL

Built-In Digital Mixer

Drawing on the powerful mixing capabilities of the popular Mackie DL1608, DLM Series loudspeakers feature a powerful integrated digital mixer with all the effects, processing and tools you need for your professional applications.

PRO

Perfect for Install

DLMs sleek design blends into virtually any setting, perfect for high-output professional applications including restaurants, clubs and coffee houses. Installation is a snap via integrated flypoints. They can also be mounted on a beam or wall using the SWM300 wall mount accessory.

DLM8

2000W 8" Powered Loudspeaker

2000W system power via ultra-efficient Class-D amplification
TruSource™ technology
- Mackie designed, vertically-aligned, common-magnet TruSource driver
  - 8″ LF woofer / 1.75″ HF compression driver
  - Incredibly compact, lightweight design
- Powerful TruSource DSP delivers seamless clarity, consistent dispersion and unmatched fidelity
DL2 Integrated Digital Mixer
- Powerful, one-touch digital mixer with bright OLED screen
- Two highly-versatile input channels with FX
  - Independent channel level, 3-band EQ and effects control
  - 16 great-sounding channel effects include reverb, chorus and delay
  - XLR/TRS combo and dual RCA connectors
  - Handles mic, line, stereo and instrument signals
- Unmatched system control for professional applications
  - Multi-band feedback destroyer
  - Six speaker modes deliver the perfect voicing for your application
  - Alignment delay up to 300ms for delay stack, balcony, etc.
  - Three memory locations for instant venue setting recall
  - Smart Protect DSP dynamically protects amp/driver
Innovative ultra-compact design
- 1/3 smaller than a traditional 2-way
  - Fit an entire DLM system in nearly any car
  - Stack them up for storage
  - Pole-mountable on tripod or atop DLM12S using SPM300 speaker pole
  - Flyable via standard M10 rigging hardware
  - Wall-mount them using SWM300 articulated arm for stealthy, powerful install system
  - Roadworthy PC-ABS cabinet with pro black finish and ergonomic top carry handle
  - Rugged, powder-coated 20 gauge steel grille
  - Integrated kickstand delivers perfect angle for personal monitor use

Find a Dealer

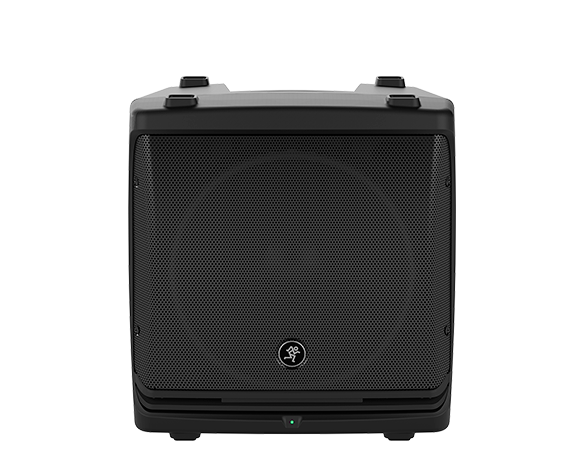

DLM12

2000W 12" Powered Loudspeaker

2000W system power via ultra-efficient Class-D amplification
TruSource™ technology
- Mackie designed, vertically-aligned, common-magnet TruSource driver
  - 12″ LF woofer / 1.75″ HF compression driver
  - Incredibly compact, lightweight design
- Powerful TruSource DSP delivers seamless clarity, consistent coverage and unmatched fidelity
DL2 Integrated Digital Mixer
- Powerful, one-touch digital mixer with bright OLED screen
- Two highly-versatile input channels with FX
  - Independent channel level, 3-band EQ and effects control
  - 16 great-sounding channel effects include reverb, chorus and delay
  - XLR/TRS combo and dual RCA connectors
  - Handles mic, line, stereo and instrument signals
- Unmatched system control for professional applications
  - Multi-band feedback destroyer
  - Six speaker modes deliver the perfect voicing for your application
  - Alignment delay up to 300ms for delay stack, balcony, etc.
  - Three memory locations for instant venue setting recall
  - Smart Protect DSP dynamically protects amp/driver
Innovative ultra-compact design
- 1/3 smaller than a traditional 2-way
  - Fit an entire DLM system in nearly any car
  - Stack them up for storage
  - Pole-mountable on tripod or atop DLM12S using SPM300 speaker pole
  - Flyable via standard M10 rigging hardware
  - Wall-mount them using SWM300 articulated arm for stealthy, powerful install system
  - Roadworthy PC-ABS cabinet with pro black finish and ergonomic top carry handle
  - Rugged, powder-coated 20 gauge steel grille
  - Integrated kickstand delivers perfect angle for personal monitor use

Find a Dealer

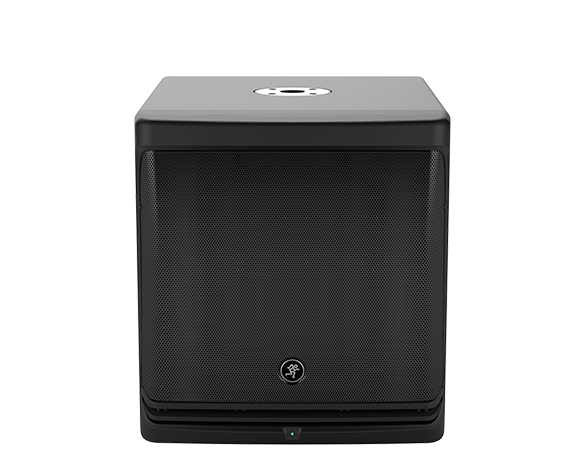

DLM12S

2000W Powered Subwoofer

2000W power via ultra-efficient Class-D amplification
High-power 12″, heat-treated woofer with 3″ voice coil
Ultra-low frequency extension hits hard down to 35 Hz
DLP Digital Processor
- Powerful, one-touch digital processor with bright OLED screen
- Precision digital crossover
  - Presets for use with DLM and SRM Series full-range loudspeakers
  - Variable crossover control for optimization with any loudspeaker
- Six total XLR connects for flexible I/O control
  - Two line level inputs
  - Two full-range outputs for side fills, etc.
  - Two high-pass outputs for direct connection to DLM loudspeakers
Unmatched system control for professional applications
- Alignment delay up to 300ms for delay stack, balcony, etc.
- Three memory locations for instant venue setting recall
- Smart Protect DSP dynamically protects amp/driver
Innovative ultra-compact design
- Highest-output compact subwoofer on the market
  - Fit an entire DLM system in nearly any car
  - Stack them up for storage
  - Pole mount a DLM8 or DLM12
- Extremely durable 15mm poplar cabinet
- Rugged, powder-coated 20 gauge steel grille

Find a Dealer

Support

What is Clipping?

May 22, 2017

To understand clipping, it is helpful to have a basic understanding of the electronic systems in which the audio signal travels. Once acoustic signals are converted to an electronic signal (via a... Read More

PRODUCT	TRANSDUCER	POWER	FREQ. RESPONSE	DSP	POLARITY INVERT	FLYABLE	WEIGHT
DLM8	8" LF / 1.75" HF	2000W	65Hz-20kHz (-10dB)	DL2 Digital Mixer	N/A	Yes	22 lb / 10 kg
DLM12	12" LF / 1.75" HF	2000W	38Hz-20kHz (-10dB)	DL2 Digital Mixer	N/A	Yes	31 lb / 14 kg
DLM12S	12" LF with 3" VC	2000W	35Hz-120Hz (-10dB)	DLP Digital Processor	Yes	No	48 lb / 22 kg
