NEW! DL32S & DL16S

COMMAND
Your Mix

DL32S and DL16S bring all the powerful DSP, renowned Onyx+ mic preamps, and Built-Like-A-Tank reliability that the DL Series is known for, in an all-new stagebox form factor with built-in WiFi. Mount it in a rack, set it on a desk, or put it right on the stage. Mix your way.

FIND A DEALER

Experience

Your Best mix ever

The Mackie DL32S and DL16S deliver proven mixing power with legendary Onyx+ mic preamps in an all-new Built-Like-A-Tank™, stage-friendly design made to withstand real-world abuse. Get mixing quickly with built-in Wi-Fi and the industry-leading, multi-platform Master Fader™ app. Create stunning multi-track recordings and get playback for a virtual soundcheck via USB I/O. Loaded with channel/output DSP plus 4 FX processors, DL32S and DL16S give you the mixing power you need for your best mix ever.



Want the latest DL Series and Master Fader news? Sign up here

DL32S & DL16S Overview

Series Overview
DL32S & DL16S

Features

The world of digital mixing awaits

rugged

Stagebox Design

Musicians, engineers, venues, and everyone in between need to get up and running, and sound great quickly. DL32S and DL16S can be placed anywhere you need them. Steel construction, big rubber corners, and a handle that wasn't an afterthought mean that you can count on it to deal with the not-so-delicate load in at gigs every night.

networking

Built-In WiFi

When every second counts in your setup time, the last thing you want to worry about is networking issues. DL32S and DL16S create their own network so you can connect your control device directly via Wi-Fi.

Need even more range? Connect your mixer via Cat5E / Cat6 Ethernet directly to your own wireless router or network switch.

DSP

Powerful Processing

With the DL32S and DL16S, you get powerful processing that replaces racks and racks of outboard gear, takes up WAY less space and is incredibly affordable.



  • 4-band PEQ + HPF, gate, compression and RTA/Spectrograph on all input channels
  • 4-band PEQ + HPF/LPF, 31-band EQ, comp/limiter, alignment delay and RTA/Spectrograph on all output busses
  • 4 Stereo FX processors with all-new, great-sounding reverbs, delays, choruses, flangers, and more. All include dedicated sends and returns.
Control

The Most Intuitive Control App Ever

The Master Fader control app is where everything happens. Ultra-fast navigation with View Groups and overview, quick setup with factory and user-definable presets, recallable Onyx+ mic pres plus prevent unwanted adjustments with access limits. With multi-platform support, you can take command of your mix, your way.

Learn more about Master Fader

Series Line-Up

Powerful, versatile mixing in 32 and 16 channel versions

DL16S

16-Channel Wireless Digital Live Sound Mixer with Built-In Wi-Fi for Multi-Platform Control



16-CHANNEL WIRELESS DIGITAL MIXER

  • 16 Onyx+™ recallable mic preamps
  • 8 fully-assignable XLR outputs plus headphone output
  • Industry-leading Master Fader control app
  • 16x16 USB recording
  • Ditch the snake – Place it anywhere on stage or in a rack

WIRELESS MIXING

  • Complete control via iOS, Android, Mac*, or PC*
  • No set FOH position – mix from anywhere
  • Supports up to 20 separate devices at once
  • Multiple engineers can work from a single mixer

POWERFUL PROCESSING AND SIGNAL PROCESSING

  • 16 input channels with 4-band PEQ + HPF, gate, compression and RTA/Spectrograph
    • 16 stereo-linkable input channels
  • 13 output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter, alignment delay and RTA/Spectrograph
    • 6 stereo-linkable aux sends
    • 6 stereo-linkable subgroups
    • Main L/R bus
  • 6 VCAs and 6 mute groups
  • 4 stereo FX processors featuring great built-in FX like reverbs, delays, choruses, flangers, and many more with dedicated sends and returns
  • Full I/O routing with A/B sources per channel
  • Assignable oscillator including pink/white noise and sine waves
  • Modern and Vintage options for comp/gate and EQ

MULTI-TRACK RECORDING & PLAYBACK

  • 16x16 USB 2.0 audio interface for Mac or PC
  • Record the show for later mixdown
  • Play intermission music, backing tracks and more directly into a dedicated stereo return channel
  • Perform a virtual sound check
  • Amazing low-cost, high channel count studio recording solution
  • Utilize Mac or PC audio plug-ins in a live environment

MASTER FADER CONTROL APP

  • Intuitive and easy to master
  • Fast navigation with view groups and overview
  • Quick setup with tons of factory and user-definable presets
  • Access Limiting allows flexible customization of the user interface and prevents unwanted adjustments from other users
  • Quickly access channel processing, signal routing, and a massive suite of great sounding effects with presets to get you started
  • Export presets, shows and complete system backups via Dropbox, email and more
  • Complete offline operation
  • Easy and frequent updates
  • Available on iOS, Android, macOS*, and Windows*



*Mac and PC coming in Master Fader 5.1

DL16S and DL32S are compatible with iOS 10 or later, Android OS 6 or later, macOS 10.2 or later, and Windows 10 or later

DL32S

32-Channel Wireless Digital Live Sound Mixer with Built-In Wi-Fi for Multi-Platform Control



32-CHANNEL WIRELESS DIGITAL MIXER

  • 32 Onyx+™ recallable mic preamps
  • 10 fully-assignable XLR outputs plus headphone output
  • Industry-leading Master Fader control app
  • 32x32 USB recording
  • Ditch the snake – Place it anywhere on stage or in a rack

WIRELESS MIXING

  • Complete control via iOS, Android, Mac*, or PC*
  • No set FOH position – mix from anywhere
  • Supports up to 20 separate devices at once
  • Multiple engineers can work from a single mixer

POWERFUL PROCESSING AND SIGNAL PROCESSING

  • 32 input channels with 4-band PEQ + HPF, gate, compression and RTA/Spectrograph
    • 32 stereo-linkable input channels
  • 15 output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter, alignment delay and RTA/Spectrograph
    • 8 stereo-linkable aux sends
    • 6 stereo-linkable subgroups
    • Main L/R bus
  • 6 VCAs and 6 mute groups
  • 4 stereo FX processors featuring great built-in FX like reverbs, delays, choruses, flangers, and many more with dedicated sends and returns
  • Full I/O routing with A/B sources per channel
  • Assignable oscillator including pink/white noise and sine waves
  • Modern and Vintage options for comp/gate and EQ

MULTI-TRACK RECORDING & PLAYBACK

  • 32x32 USB 2.0 audio interface for Mac or PC
  • Record the show for later mixdown
  • Play intermission music, backing tracks and more directly into a dedicated stereo return channel
  • Perform a virtual sound check
  • Amazing low-cost, high channel count studio recording solution
  • Utilize Mac or PC audio plug-ins in a live environment

MASTER FADER CONTROL APP

  • Intuitive and easy to master
  • Fast navigation with view groups and overview
  • Quick setup with tons of factory and user-definable presets
  • Access Limiting allows flexible customization of the user interface and prevents unwanted adjustments from other users
  • Quickly access channel processing, signal routing, and a massive suite of great sounding effects with presets to get you started
  • Export presets, shows and complete system backups via Dropbox, email and more
  • Complete offline operation
  • Easy and frequent updates
  • Available on iOS, Android, macOS*, and Windows*



*Mac and PC coming in Master Fader 5.1

DL16S and DL32S are compatible with iOS 10 or later, Android OS 6 or later, macOS 10.2 or later, and Windows 10 or later

Master Fader Development Roadmap
News & Events
Master Fader Roadmap
We have some big plans for Master Fader in the coming months. We want to make sure you are well informed on the awesome new capabilities and when to expect them. Check out the full rundown and... Read More

QUICK COMPARISON

PRODUCT

ANALOG INPUTS

ANALOG OUTPUTS

MATRIX MIXES

DIRECT TO DRIVE RECORDING

DANTE I/O AVAILABLE

FX PROCESSORS

USB I/O
DL1608 16 8 No No No 2 No
DL806 8 6 No No No 2 No
DL32S 32 10 No No No 4 32x32
DL16S 16 8 No No No 4 16x16
DL32R 32 16 6 Yes Yes 3 (4 with v5.1) 32x32

SPECS & DOWNLOADS

SOFTWARE / FIRMWARE

Driver

Mackie USB Driver v4.47.0

Driver Install Instructions

Mackie USB Driver v4.47.0

PRODUCT PHOTOS

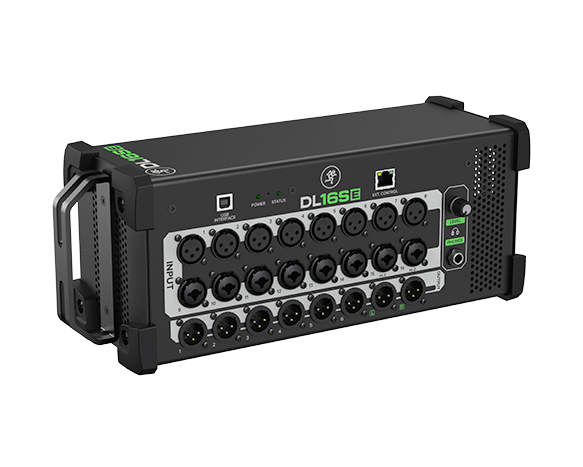

DL16S
